ISO 9001 Certified Manufacturer

Lawn Mower Manufacturer

From single-blade tow-type lawn mower models to twin-blade and integrated mow-rake machines — engineered for pasture farms, ranches, and large-scale agricultural operations worldwide. Cutting widths from 2.5 m to 5.6 m.

View Products
Get Free Quote
5+
Lawn Mower Models
2.5–5.6m
Cut / Rake Width
100+
Technical Patents
ISO 9001
Quality Certified
30+
Export Countries
Lawn Mower Product Line

Our Lawn Mower Machine Series

Each lawn mower model below has been field-tested across grasslands, pastures, and cropping systems. Specs extracted directly from certified production documentation.

UPGRADED MODEL

EP-9GD-2.5 Traction Single Blade Lawn Mower — Upgraded Version

This upgraded tow-type lawn mower machine is tractor-drawn by a 15–35 kW (20–50 HP) wheel-type tractor. Suited for cutting natural and cultivated pastures, the hydraulic lift system handles the cutter bar automatically so a single operator manages everything from the cab. Compliant with GB/T10940-2008 reciprocating lawn mower standard and holds Agricultural Machinery Testing Certificate.

Cut Width2.5 m
Power Range15–35 kW
Productivity2.0–3.0 hm²/h
Work Speed6–10 km/h
STANDARD MODEL

EP-9GD-2.5 Traction Single Blade Lawn Mower

The standard 9GD-2.5 lawn mower shares the same proven reciprocating cutter bar design as the upgraded variant, offering a cost-accessible entry point into tractor-mounted lawn mower machines for pasture operations. Ideal for farms running 20–50 HP tractors that need reliable, single-pass cutting performance on natural grassland terrain.

Blade Count34 blades
PTO Speed540 r/min
Stubble Height50–70 mm
Machine Weight490 kg
HIGH OUTPUT

EP-9GS-5.0 Traction Double Blade Lawn Mower

When single-pass coverage matters, the 9GS-5.0 twin blade lawn mower machine doubles your effective working width to 5 meters in a single tractor pass. Dual reciprocating cutter bars operate simultaneously at 6–7 km/h, delivering 2.4–2.8 ha/h throughput — making it among the most productive tow-type lawn mower options for commercial pasture operations. One operator. One tractor. Done.

Total Cut Width5.0 m
Power Range20–30 kW
Productivity2.4–2.8 ha/h
Machine Weight750 kg
2-IN-1 SYSTEM

EP-9GL-5.0/5.6 Trailed Mower Rake

The 9GL-5.0/5.6 combines a 5 m reciprocating lawn mower with a 5.6 m windrowing rake into one tractor-drawn implement. After cutting, the raking section immediately gathers the cut grass into neat windrows for baling — eliminating a separate field pass and cutting overall fodder harvest time significantly. Configured for 30–60 kW tractors with rear PTO.

Mow Width5.0 m
Rake Width5.6 m
Rake Teeth78 teeth
Rake Output3.0–3.6 hm²/h
COMPACT COMBO

EP-9GL-2.5/2.9 Trailed Mower Rake — Tow-Type Mow-Rake Integrated Machine

A compact alternative to the 5 m series, the 9GL-2.5/2.9 is the preferred lawn mower machine for smaller pasture operations or farms with 35–75 HP tractors. Mow and windrow simultaneously with a 2.5 m cut bar and 2.9 m raking section — minimizing both field time and labor costs. Hydraulic-controlled cutter and rake lift. PTO at 540 r/min.

Mow Width2.5 m
Rake Width2.9 m
Power Range25–55 kW
Machine Weight920 kg
VERSATILE SERIES

EP-9GB Reciprocating Lawn Mower

The 9GB series is a tractor-mounted reciprocating lawn mower designed for hills, sloping fields and small plots. Operated by a single driver from the cab, it uses a hydraulic lift system to raise the entire cutter bar when crossing obstacles. Available in five cutting widths: 1.2 m, 1.4 m, 1.6 m, 1.8 m, and 2.1 m (double link).

Cut Width1.2–2.1 m
Cutting Height60–80 mm
Matched Power12–50 HP
Mount TypeStandard 3-Point

Lawn Mower Technical Specifications Comparison

All figures from certified production documentation. Contact us for detailed spec sheets and custom configuration options.

Parameter 9GD-2.5 Upgraded 9GD-2.5 Standard 9GS-5.0 Twin 9GL-5.0/5.6 9GL-2.5/2.9
Connection Type Tow-type Tow-type Tow-type Tow-type Tow-type
Cutter Type Reciprocating Reciprocating Reciprocating ×2 Reciprocating Reciprocating
Cut Width (m) 2.5 2.5 5.0 5.0 2.5
Rake Width (m) — — — 5.6 2.9
Power (kW) 15–35 15–35 20–30 30–60 25–55
Work Speed (km/h) 6–10 6–10 6–7 6–7 6–7
Productivity (hm²/h) 2.0–3.0 2.0–3.0 2.4–2.8 2.4–2.8 1.2–1.44
Stubble Height (mm) 50–70 50–70 60–70 60–70 60–70
Machine Weight (kg) 490 490 750 1,100 920

Specifications based on certified production documentation (GB/T10940-2008). Custom configurations available upon request. Contact [email protected] for detailed datasheets.

About us-Build Quality

Our manufacturing capabilities

A lawn mower machine that spends its life in abrasive grass, dust, and wet soil can't afford compromises on materials. Our production team — working on CNC laser-cut, robotically welded structural steel — applies the same material discipline across the entire product range.

Main Frame

High-strength low-alloy structural steel (Q355 grade), CNC laser-cut to tolerance and robotically MIG-welded. Electrostatic powder-coated finish resists corrosion across seasons.

Cutter Blades

High-carbon tool steel (65Mn), heat-treated to HRC 48–52. Each blade is precision-ground for flatness to ensure consistent shear contact. The 34-blade array on 9GD-2.5 models covers the full 2.5 m cut path without gaps.

Gearbox & Driveshaft

Forged alloy steel gears, ground to ISO class 7 tolerances. Oil-bath lubrication with sealed bearings extends service intervals beyond 500 operating hours without overhaul.

Rake Teeth (9GL Series)

Spring-steel wire teeth, heat-set for consistent elasticity. 42–78 teeth depending on model, spaced 71 mm apart for clean gathering without soil contamination.

workshop

Factory Capability: 32,000 m² production floor with CNC laser cutting, automated welding lines, and electrostatic spray coating — all under ISO 9001:2015 quality management.

Our Strengths

Why Choose Us

Partnering with us means securing industry-leading machinery backed by unparalleled manufacturing standards, patent-pending technologies, and streamlined factory-direct supply chains.

Our High Performance Mower Equipment Showcase
Factory Standard
Engineered for Tough Terrains

Factory-Direct Supply

Enjoy a streamlined supply process from our 32,000 m² facility. Delivering 2,000+ units annually per production line without any intermediary markup.

ISO 9001 Quality

Third-party certified. Every single batch is strictly inspected against documented quality acceptance criteria before secure dispatch to guarantee zero-defect field operations.

100+ Patents

Driven by breakthroughs in cutter bar design, hydraulic controls, and axle-flow feeding systems backed by official utility model technology patents.

OEM / Custom

Flexible cut widths, alternative power configurations, and private labeling. Our expert R&D team accommodates non-standard engineering orders with fully verified CAD support.

How a Tow-Type Lawn Mower Machine Works

Understanding the mechanical principles helps you select the right lawn mower and maintain it for peak performance across thousands of operating hours.

PTO Power Transfer
1

PTO Power Transfer

The tractor's rear power take-off shaft (540 r/min) drives the lawn mower's gearbox through a universal-joint driveshaft. A V-belt or gear system steps up speed to drive the reciprocating cutter bar at the correct oscillating frequency.

Reciprocating Cutter Action
2

Reciprocating Cutter Action

Moving blades slide back and forth against stationary counter-blades — a scissors-like shear cut that severs stalks cleanly without bruising. This design is especially effective for pasture grass and alfalfa where a clean cut promotes faster regrowth compared to rotary tearing.

Hydraulic Lift System
3

Hydraulic Lift System

The cutter bar assembly connects to the main frame via a hydraulic cylinder controlled from the tractor cab. The operator raises or lowers the cutter without leaving the seat — critical for managing headlands, obstacles, and varying ground contour during commercial lawn mower operations.

Rake & Windrow
4

Rake & Windrow (9GL Series)

On the integrated mow-rake lawn mower models, spring-tooth raking fingers mounted behind the cutter bar drag cut material into a single continuous windrow. This removes the need for a separate raking pass, reducing field traffic and saving both fuel and time per hectare.

OEM / Custom Orders

Lawn Mower Selection Guide

Answer three quick questions to narrow your choice. Then contact us for a formal recommendation and quote.

My Situation Recommended Lawn Mower Key Reason
20–50 HP tractor, cut only, up to 30 ha/day 9GD-2.5 Standard or Upgraded Low power requirement, simple operation, proven GB/T standard
30–50 HP tractor, need high daily coverage (50+ ha) 9GS-5.0 Twin Blade 5m dual-cutter doubles coverage vs. single blade per pass
Need to mow AND windrow in one pass, smaller farm 9GL-2.5/2.9 Mow-Rake Eliminates separate raking field pass on small to mid-size operations
Large commercial pasture, 40–80 HP tractor, baling next step 9GL-5.0/5.6 Mow-Rake 5m cut + 5.6m rake — highest throughput for downstream baling
Need custom width, private label, or OEM program Contact Engineering Team We handle non-standard configurations with full CAD documentation
Who We Are

About us

Purpose-Built for Commercial Pasture & Agricultural Mowing.

We are a manufacturer of our own lawn mower equipment, certified by ISO 9001:2015 quality management system. We specialize in the R&D, production, and sales of agricultural harvesting machinery, including lawn mowers, hay rakes, and round balers.

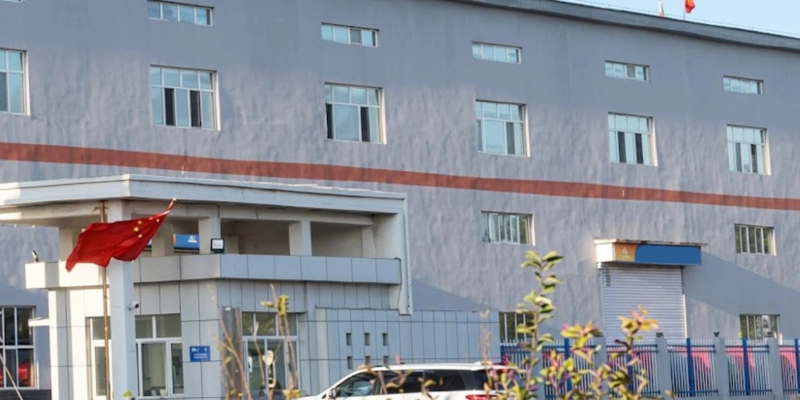

Lawn Mower Factory Overview
Production Lines

Massive Production Capacity

We have a 32,000-square-meter production base equipped with dedicated production lines, each with an annual capacity exceeding 2,000 units.

R&D and Engineering

R&D & Engineering Excellence

We have our own R&D center and hold over 100 registered technology patents. Each design undergoes rigorous computer-aided engineering verification.

Global Market

Global Market Expansion

Built for the world stage. We actively focus on expanding our international market footprint, delivering reliable agricultural machinery across Central Asia and Eastern Europe.
